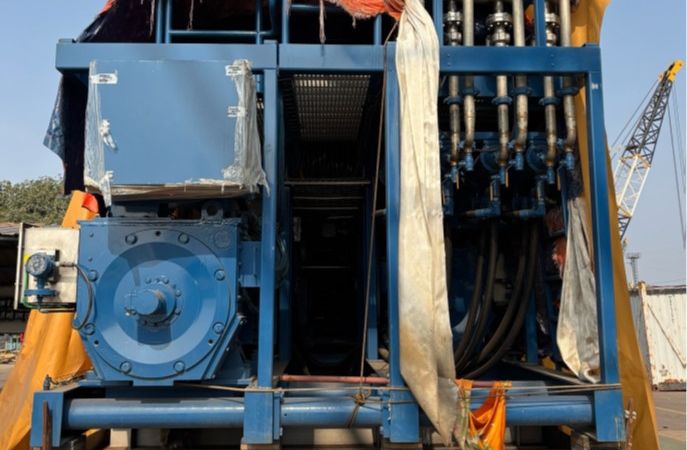

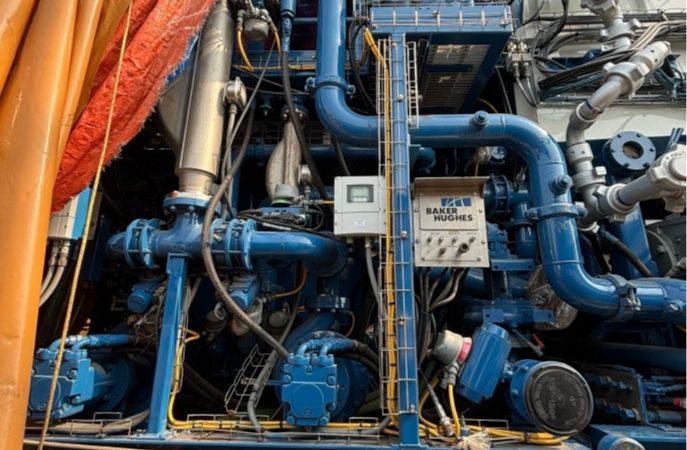

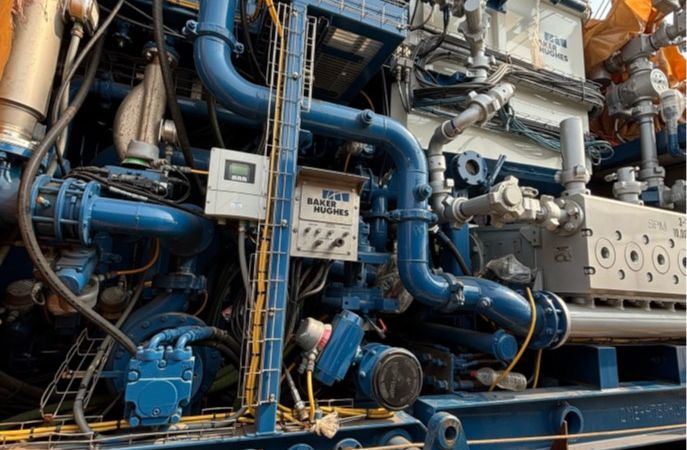

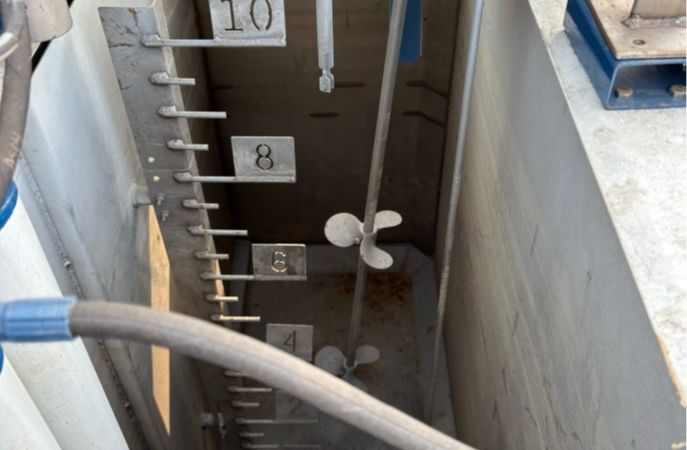

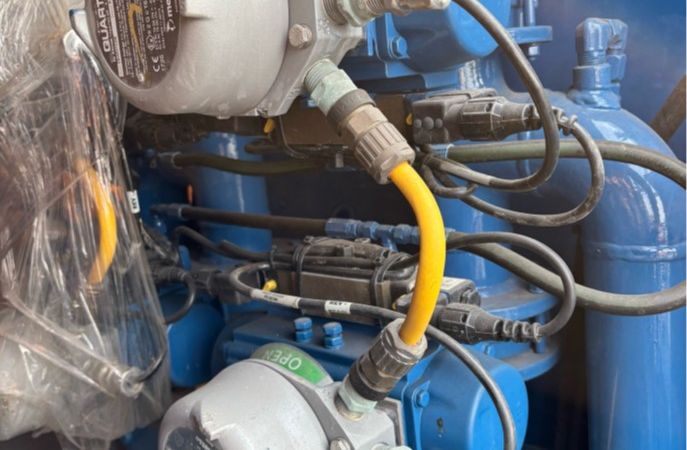

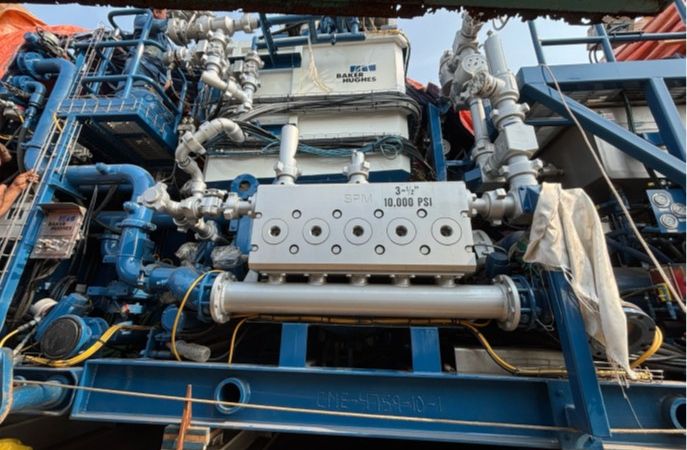

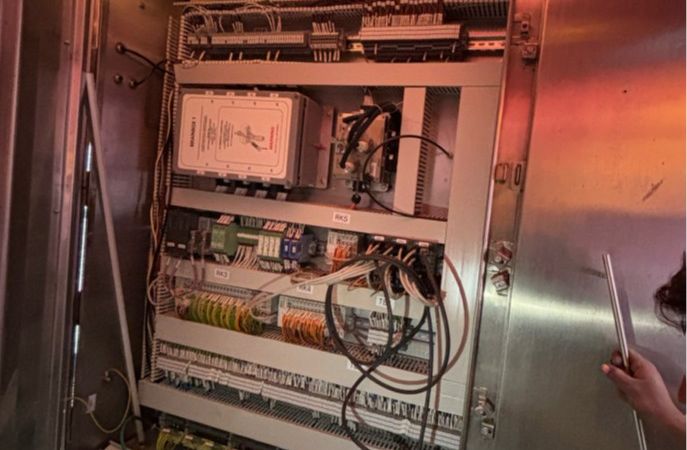

Cementing Unit

description:

Type Units Main Pump Gardner Denver Model GP-600 Max RPM 600 RPM Gear Ration 4.68:1 Stroke Length 6 in / 152.4 mm Max Liner Size 5 in / 127.0 mm Max. Pressure @ 100 RPM 16,845 psi / 1,161 bar Max. Flow Rate @ 450 RPM 2605 LPM / 688 GPM Weight 5000 lbs / 2268 kg Truck Engine Caterpillar Type C15 ACERET Output Power 550 HP / 410 kW Engine Speed (Nominal) 600 RPM Engine Speed (Unloaded) 1800 RPM Hours 22,000 h Transmission Model Eaton Fuller Fuel Tank Capacity Eaton Fuller 200 US gal / 757 Liter Pump Engine John Deere Model PE4045 Output Power 125 HP / 93 kW Engine Speed (Nominal) 600 RPM Engine Speed (Unloaded) 1800 RPM Unit Dimensions (Overall) Length (Support Mounted) 420.47 in / 10.68 m Width 100.79 in / 2.56 m Height 126 in / 3.2 m Weight (Without Fuel) Tarre 51,367 lbs. / 23,300 kg
